CenLee Blood Bag Tube Sealer for Blood Bags and Transfusion Tubes Sealing in Hospitals and Blood Banks

CenLee Blood Bag Tube Sealer for Blood Bags and Transfusion Tubes Sealing in Hospitals and Blood Banks

Наименование марки:	Cenlee
Номер модели:	CL-TP1/TS1
MOQ:	1 комплект
цена:	865~1076USD PER UNIT
Условия оплаты:	Western Union, L/C, D/P, T/T
Способность к поставкам:	5000 комплектов в месяц

Подробная информация

Характер продукции

Подробная информация

Место происхождения:

Китай

Сертификация:

ISO9001/13485，CE

модель:

CL-TP1/TS1

Название:

Запечатка кровеносных мешков

Тип герметизации:

Автоматический

Применение:

PE или PVC, внешний диаметр 2 мм-6 мм, толщина стенки

Измерение (l*w*h):

204ммx145ммx55мм

Максимальная ширина уплотнения:

время запечатывания:

1-1,5 с

Власть:

Работа: 150 Вт / резерв: 3W

Размер упаковки:

470 мм х 260 мм х 280 мм

Упаковывая детали:

Картон

Поставка способности:

5000 комплектов в месяц

Выделить:

Banks Blood Bag Tube Sealer

Hospitals Blood Bag Tube Sealer

Transfusion Tube Blood Bag Tube Sealer

Характер продукции

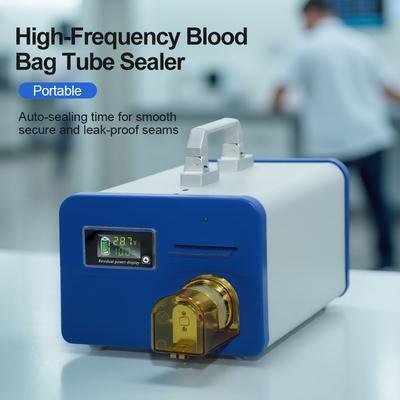

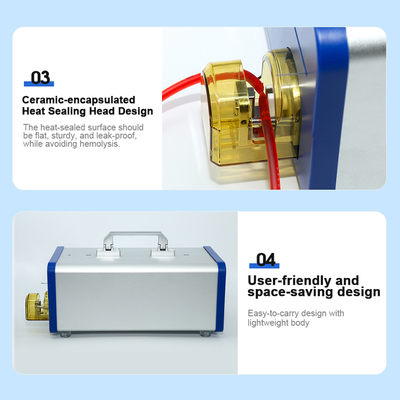

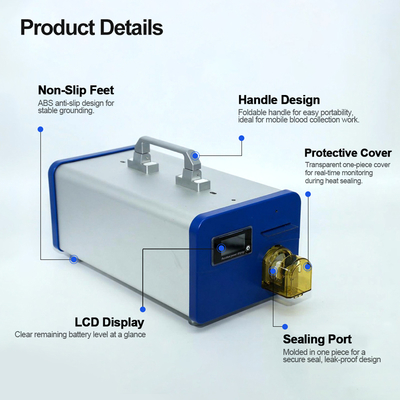

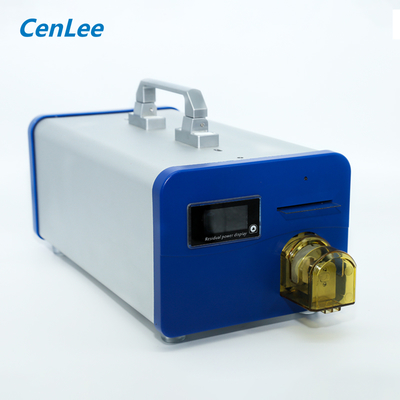

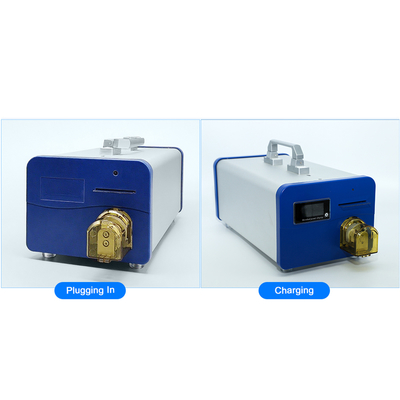

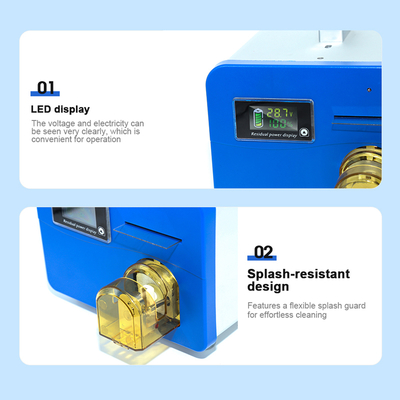

CenLee Blood Bag Tube Sealer for Blood Bags and Transfusion Tubes Sealing in Hospitals and Blood Banks

Product Description:

The automatic heat sealer is used for sealing and heat sealing of medical PVC blood collection bag catheters.
It is mainly applicable to the blood transfusion department, blood collection department and component department of the hospital at all levels, blood bank and medical research and so on. Working Principle: The high-frequency electrode on the heat-sealing head conducts high-frequency induction heating to the PVC pipeline, so that the PVC pipeline reaches a molten state (the PVC material conduit is polarized under a high-frequency electric field), and the heat-sealing electrode presses the molten part. A heat seal is completed after the time.

Main Features:
1. Adopt transistor high frequency generator. Its radiation is weak.
2. The circuit is mature and stable. Safe and reliable. Long service life.
3. The heat sealing process is fully automated. There is no voltage adjustment and time adjustment.
4. Humanized design with small size, light weight, easy movement and simple operation.
5. The advantages of rapid, accurate and stable heat sealing are suitable for heat sealing of mobile blood collection tubes.
Operation

Instruction:
1. Pinch the two sides of the pipeline to be heat-sealed with both hands, and put the pipeline into the heat-sealing tank.
2. Use a little more force with your right hand to trigger the probe/switch in the heat seal slot.
3. At this time, the heat sealing head slowly pulls in, which is the working state.
4. About 2-6 seconds, the heat sealing is completed at this time, and it stops automatically.
5. After the heat sealing is completed, take out the heat sealing hose, cut the hose along the heat sealing gap or pull the hose slightly with both hands to separate the two sections.

Specification

model	CL-TP1	CL-TS1
Sealing Time	1-2.5S	1-2.5S
Power supply	AC single phase, 110V or 220V±10V, 50Hz/60Hz, 5A	AC single phase, 110V or 220V±10V, 50Hz/60Hz, 5A
Sealing Type	Automatic	Automatic
Power	working: 150W / standby: 3W	working: 150W / standby: 3W
Applicable materials	PE or PVC, outer diameter 2mm--6mm, wall thickness ≤1.5mm	PE or PVC, outer diameter 2mm--6mm, wall thickness ≤1.5mm
Dimensions	355mmx185mmx175mm	355mmx185mmx175mm
key selling points	Easy to Operate, Low Noise Level, Long Service Life	Easy to Operate, Low Noise Level, Long Service Life
RF Power	30w	30W
Heat sealing quantity	It takes 2 hours to fully charge and can be heat sealed 350-700 times (depending on the ambient temperature), with a working time of>3 hours
Nominal voltage/battery rated capacity	4AH
Charging limit voltage	29.2V
